181. Now
reinsert the differential pinion shaft. Retain it from
the other side so it does not fall thru. |
|
.jpg)
182. We will now apply loctite
to our differential pinion shaft lock bolt. |
|
|
|
.jpg)
183. Insert the differential
pinion shaft lock bolt back into the case and thru the
pinion shaft. It may take a little rotating of the shaft
to get it in.
Torque the pinion shaft lock bolt to 22 lb ft.
|
|
.jpg)
184. Positraction carriers
require anti-friction additive for the clutches. Don't
forget it. |
|
|
|
.jpg)
185. Adding the anti-friction
additive. |
|
.jpg)
186. Addding gear oil. |
|
|
|
.jpg)
187. We will now apply high
temp silicone to the differential cover. |
|
.jpg)

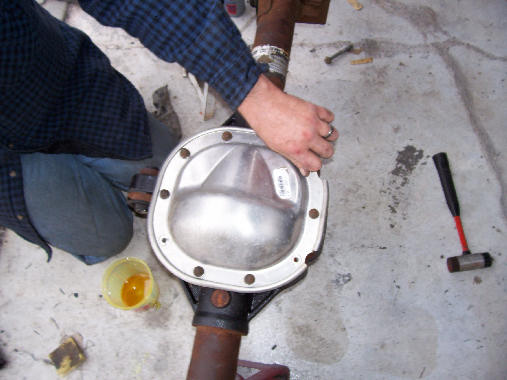

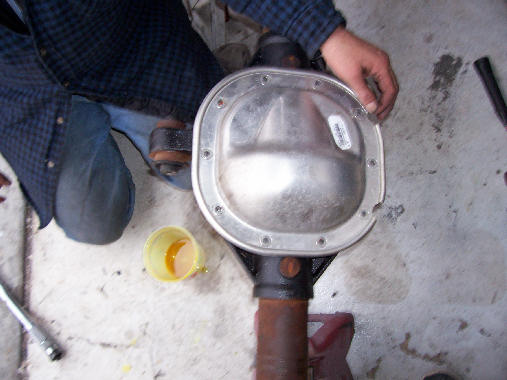

188. Place the cover on
and evenly apply pressure. |
|
|
|
.jpg)
189. Apply locktite to all
cover bolts. |
|
.jpg)
190. Insert bolts and finger
tighten in a cross pattern |
|
|
|
.jpg)

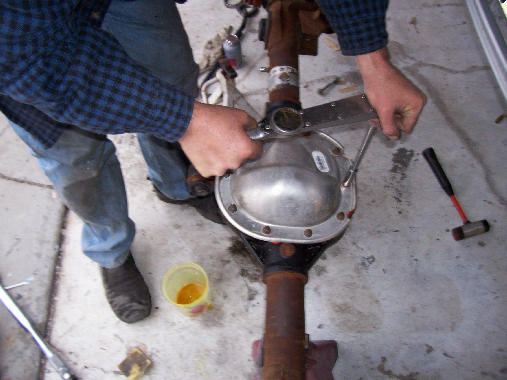

191. Torque the Differntial
cover bolts to 22 lb Ft. in an across pattern |
|
.jpg)

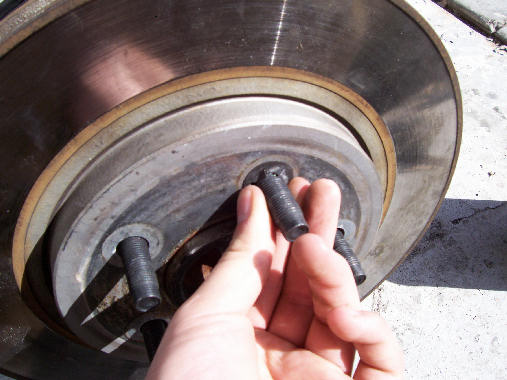

192. Reinstall the disks
onto the axles and install the assembly clip for easier
installation into the car. |
|
|
|
Axle
Reinstallation |
|
|
|
.jpg)
193. Now with one person
at each side of the axle we will lift it and move it back
under the vehicle. |
|
.jpg)
194. Reinstall and finger
tighten the lower trailing arm bolts. |
|
|
|
.jpg)

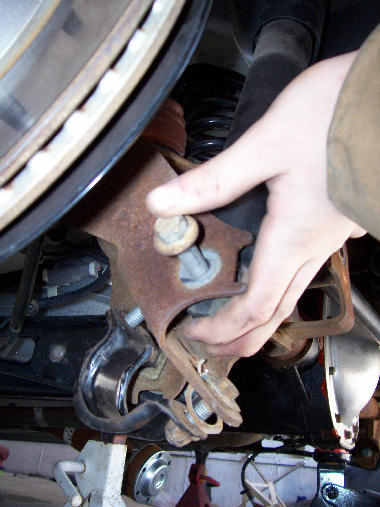

195. The lower trailing
arm flag nuts are installed with the flag facing outward,
toward the brake. |
|
.jpg)
196. We will now tighten
the lower trailing arm bolts until the flag nut is seated
into place. |
|
|
|
.jpg)
197. Now reinstall the rear
coil springs, being sure that the factory tags or the
markings you made earlier are located closest to the axle.
|
|
.jpg)
198. You'll need to control
the rear coils as you jack the rear end into the vehicle
enough to keep the rear coil springs in place. |
|
|
|
.jpg)
199. While you are jacking
the rear axle back into the vehicle be sure that the panhard
rod is located in its mounting location. |
|
.jpg)
200. Once the rear axle
is lifted enough we'll reinstall the rear shocks, finger
tighten the shock bolts to secure them the rear end in
place. |
|
|
|
.jpg)
201. The shock absorbers
flag nuts can only be installed one way, with the flag
facing inward toward the opposite side of the vehicle
in the reserved slots. |
|
.jpg)
202. We will now reattach
the upper trailing arm, the trailing arm is under quite
a bit of resistance, so you'll have to pull down on it
as you install the bolt. |
|
|
|
.jpg)
203. The flag on the bolt
is located on the driver side of the vehicle. Do to the
resistance of the upper trailing arm, you may need to
guide the bolt in as you tap it in lightly with a hammer. |
|
.jpg)
204. Once installed finger
tighten the nut on to the upper trailing arm bolt. |
|
|
|
.jpg)

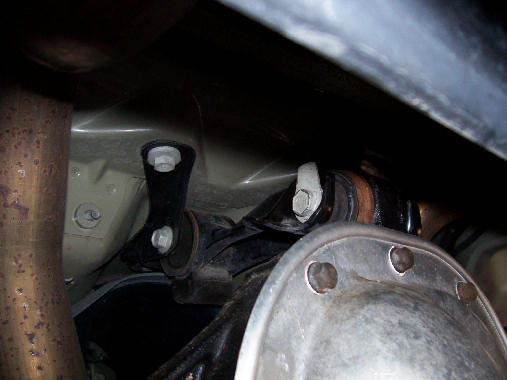

205. Now we'll reinstall
the panhard rod mounting bolt. While retaining the lower
Panhard rod flag nut with one hand, the flag faces the
front of the vehicle, we'll tighten the bolt while guiding
the flag nut until the bottoms out enough that the flag
nut won't catch the sides of the mounting location and
bend as it is being pulled in.
|
|
.jpg)
206. Now we'll Torque the
18mm Panhard rod bolt to 129 lb ft. |
|
|
|
.jpg)
207. Torque the 18mm lower
trailing arm bolts to 129 lb ft. |
|
.jpg)
208. Torque the 15mm lower
shock absorber bolts to 85 lb ft. |
|
|
|
.jpg)
209. Torque the 21mm upper
trailing arm bolt to 129 lb ft.
|
|
.jpg)

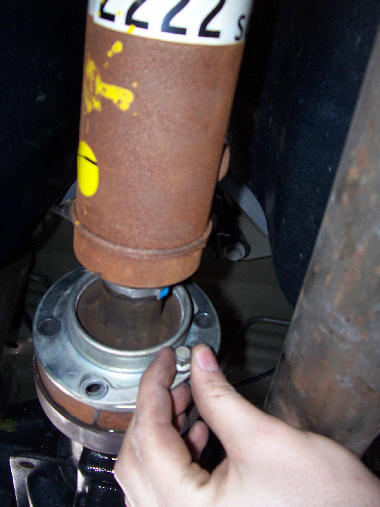

210. Now place the drive
shaft flange back into place, apply loctite to all of
the flange bolts and finger tighten with the clips in
the correct locations ensuring the pinion flange and drive
shaft marks we made on disassembly are lined up. |
